Sampling solutions start here!

Alltesta offers an automated device capable of collecting samples from closed or open vessels periodically, with high accuracy and safety.

The Samplify technology is unique and unparalled in flexibility, precision, and applicability

Key Features of the Device

Ultra-compact system allows for ready placement in controlled environments (e.g., refrigerators). Customization of standard configuration is available on request.

GIF Image

Simplified sampling

Samples are collected accurately despite difficult conditions such as high temperatures or corrosive solutions. The small system form factor also allows the entire system to be placed in a refrigerator or climate-controlled chamber.

Samples are collected in standard HPLC or GC vials, or 96-well plates. Collection trays or plates can then be transferred directly to chromatographic system for sample analysis.

Flexibility of the Samplify system offers straightforward sample collection in challenging environments and applications, including high temperatures, toxic solutions, gas pipelines, and liquid process streams.

To fully understand a chemical reaction, accurate and reproducible sampling is essential. With Samplify, samples may be collected overnight or otherwise – unattended and automatically – to provide a true, representative snapshot of the reaction at any point, while offering customizable sample quench and dilution volumes. Manual sampling is thus totally eliminated.

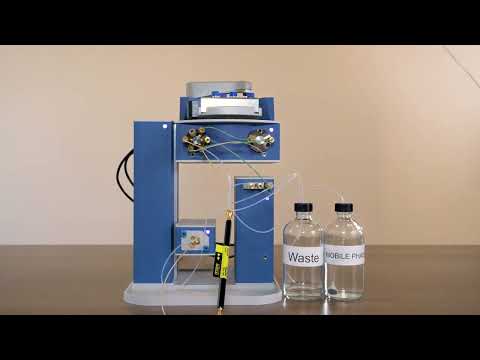

Demonstration Video

Have you seen our Demonstration video?
Video 1 Play Icon
WATCH DEMO

Additional videos

<
>

Samplify Specifications

Probe horizontal
Parameter Value
Instrument size 6 x 6.5 x 7 inch (15 x 16 x 17 cm)
Weight 5 lb (2.3 kg)
Vial Capacity Options 48 vial plate/96 well plate
Pressure Max 250 psi/ 14 bar (4000 µL volume)
Syringe Capacity Options 4000 µL
Valve Options 7x6
Volume Accuracy 1 µL (4000 µL volume)
Syringe draw/refill rates 48,000 µL/min
Communication USB (type B) COMM port
Power 24 V
Contact with liquid Stainless Steel 316 (316L), PEEK, PTFE, Vespel

Sources

Want to know some more information about this device?
Take a quick look at Flyer
or

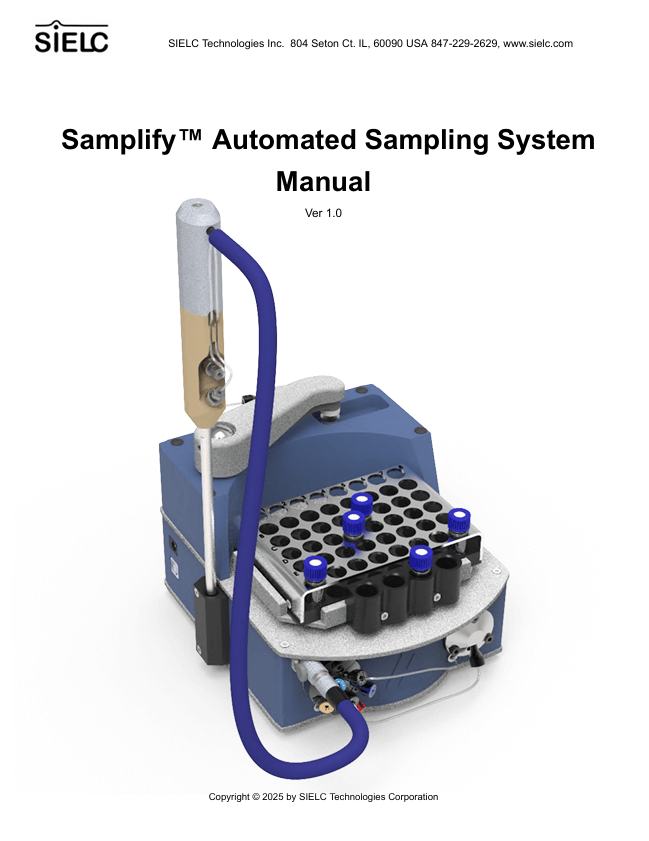

see the manual

Software

Are you looking for a software to control the device?
Background-cloud macbook servers ipad
